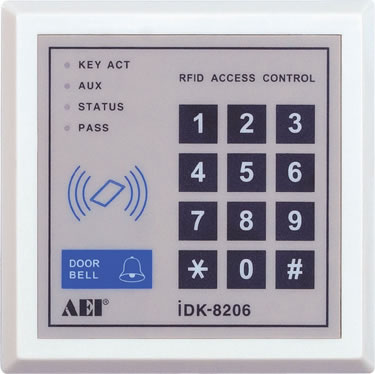

RFID / Digital Keypad Control Station-indoor
Low Cost RFID Access Control Keypad

  (Gold Price?)
Enter Qty

Low Cost RFID Access Control Keypad (Weatherproof Keypad Housing)

With a card capacity of up to 500 RFID cards, this low cost RFID unit is designed to control door strikes in home or business access control installations. It allows 4 entry methods: password, proximity card, password + proximity card and egress push button entry. Security zone detection which can be armed or disarmed and 3 output relays for door strike control, security system triggering and duress alarm.


  • 3-Operation Mode: ID Card Operation, Digital Code Operation, ID Card + Digital Code Operation
  • 2  Relay Outputs
  • 500 Users
  • Operates Fail-safe or Fail-secure Electric Locks
  • Auto Code Entry or Manual Code Entry
  • Door Force Open Alarm
  • Door Left Open Too Long Alarm
  • Output Activation Announcer
  • Pacifier Tone Inhibit Control, Audible or Silent Operation
  • Keypad Locks or Alarms After 3-10 False Entries
  • Tamper Beep Available or Tamper Beep Disabled
  • Key Activation, Alarm and Tamper Outputs
  • Can be Connected with Door-open Button and Doorbell
  • Doorbell Button Triggers Doorbell Through Relay Contact (1 Amp max)
  • All Features are Fully Keypad Programmable
  • Non-volatile Memory in Power Failure
  • Slim Keypad Housing





Operating Voltage 12V DC
Current Drain Quiescent State=30mA, Active State=105mA (3 Relays actuated, all LED lighted)
Relay Output Contacts N.O. and N.C. Dry Contacts, Max Rating of Contact Current 3A / 24V DC
Output 2 500 Codes
Card Reading Distance Max Distance 10 CM
Type of ID Card EM Card 125 KHZ
Dimension 117(H) mm x 117(W) mm x 21(D) mm
Weight 150g
